Fueling, Defueling
& Magazine Sprinkler Valves

Fueling and Defueling Valves

Shipboard aircraft fueling systems pump fuel from on-board storage through filter separators (removing water and particulates) to the ship’s piping systems and hose-reel stations on main deck or hangar deck. Hose-reel stations, controlled by Cla-Val’s 302 Marine Automatic Fueling Valves, deliver fuel to jet planes or helicopters with JP-5.  Defueling is also facilitated by this system.

Cla-Val marine fueling and defueling valves are known for their safe and reliable operation as well as for their long, trouble-free service life.

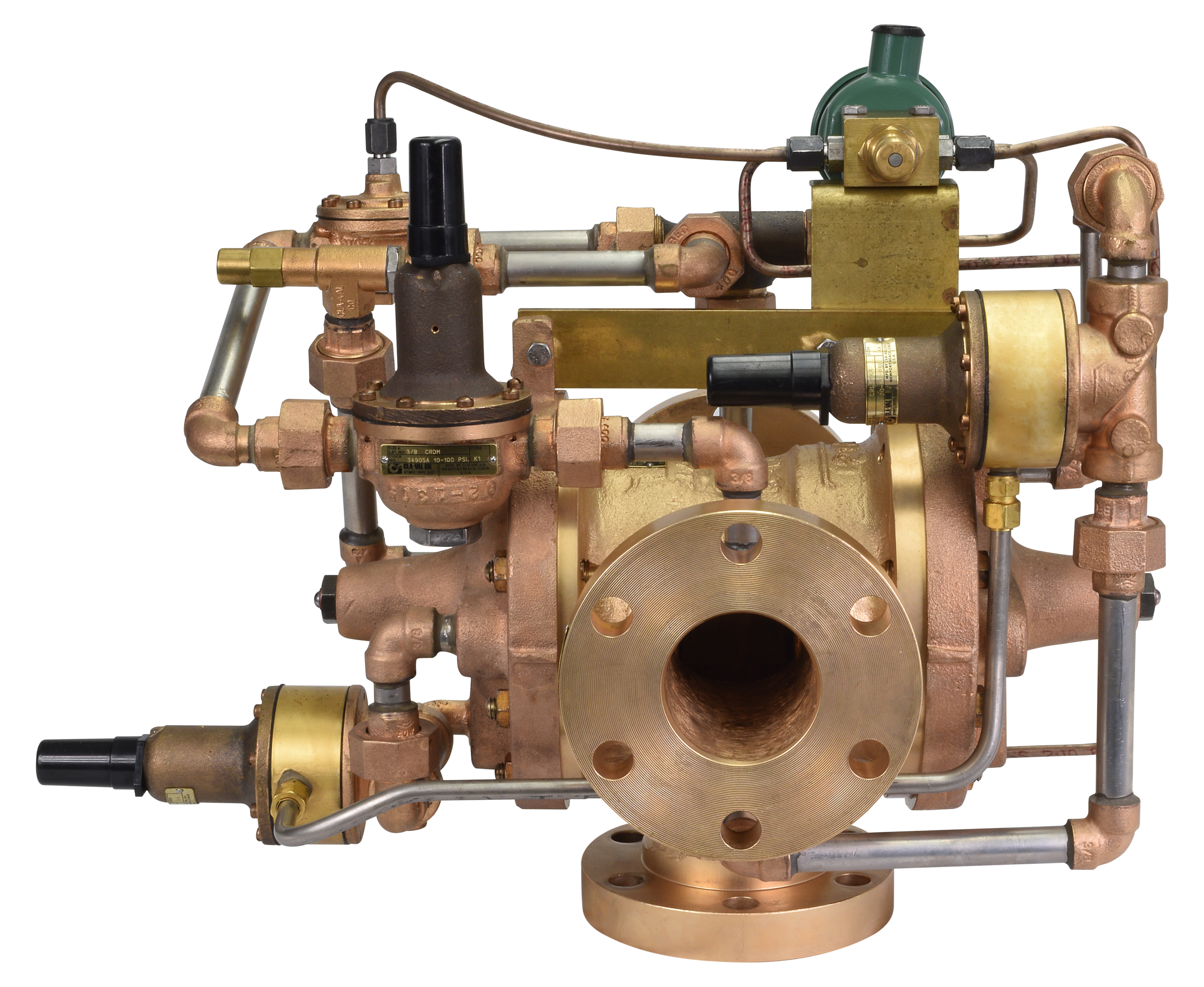

302M
Automatic Fueling and Defueling Valve

Magazine Sprinkler Valves

Cla-Val Magazine Sprinkler Valves are used seawater fire systems operated by rate of rise heating sensors in either “dry type” or “wet type” systems, flooding the magazine  (armament compartment) in the event of fire or extreme heat.

Cla-Val products used in dry type magazine sprinkler systems include:

  • Navy Standard Valve
  • 100PM-4B Magazine Sprinkler Valves
  • 100M1KR Remote Control Valves
  • CM12MB3-3 Three-Way Manual Control Valves
  • 81PM-1 Hydraulically Actuated Check Valves
  • 81M Check Valve

Cla-Val products used in wet type magazine sprinkler systems include:

  • Navy Standard Valve
  • 100PM-4B Magazine Sprinkler Valves
  • 100M1KR Remote Control Valves
  • 102M-1 Three-Way Hydraulic Control Valves
  • 105M-1 Hydraulically Operated Control Valves
  • CM15-BA3-3 Three-Way Manual Control Valves
  • 81PM-1 Hydraulically Actuated Check Valves
  • 81M Check Valve
  • X60M Orifice Plate Assemblies

Navy Standard Valve

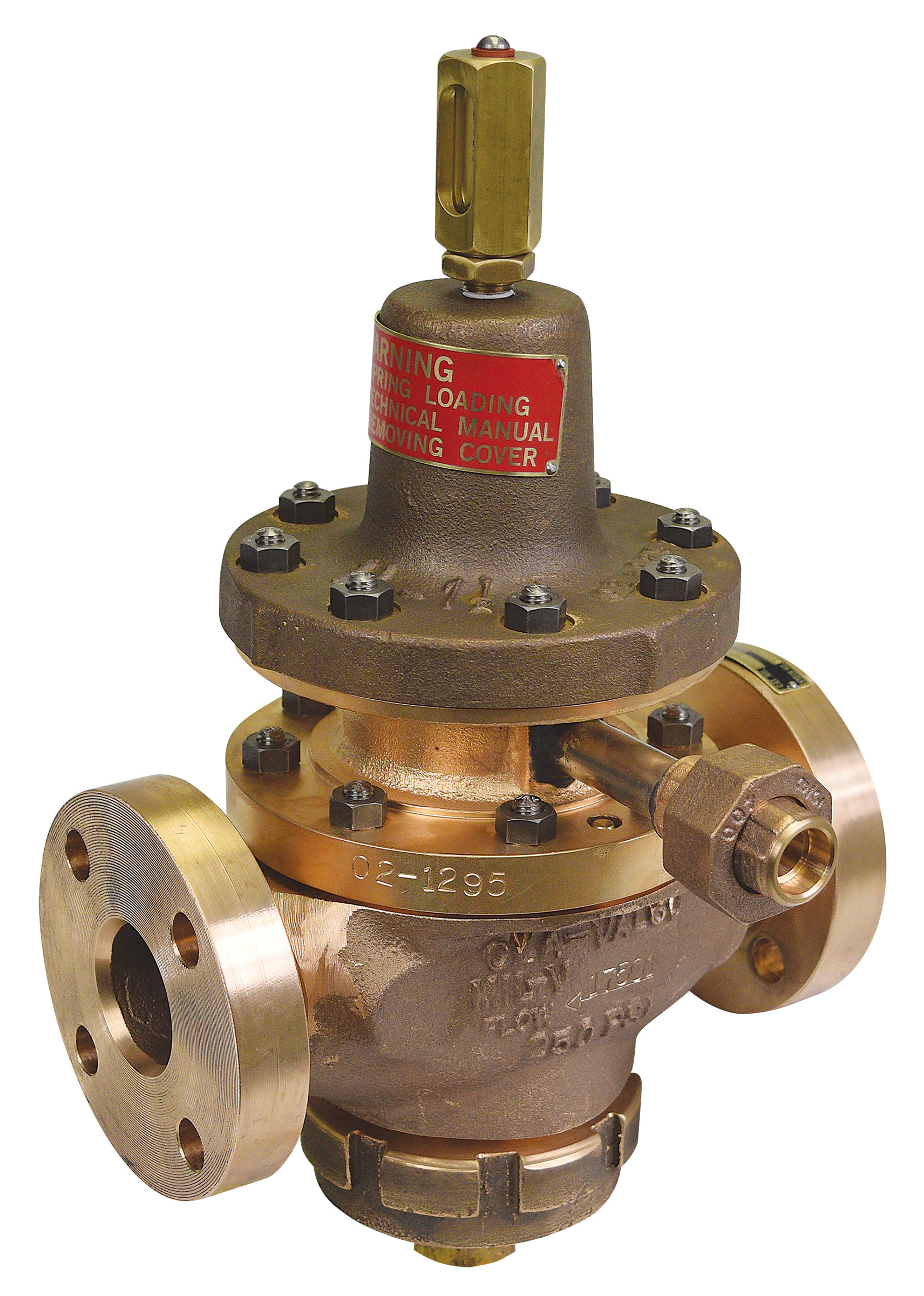

100PM-4B
Magazine Sprinkler Valve

100M-2
Normal Opening Sprinkling Valve

100PM-4
Magazine Sprinkler Valve
